FTQ-99Sx with Wireless, Audio and Time Code

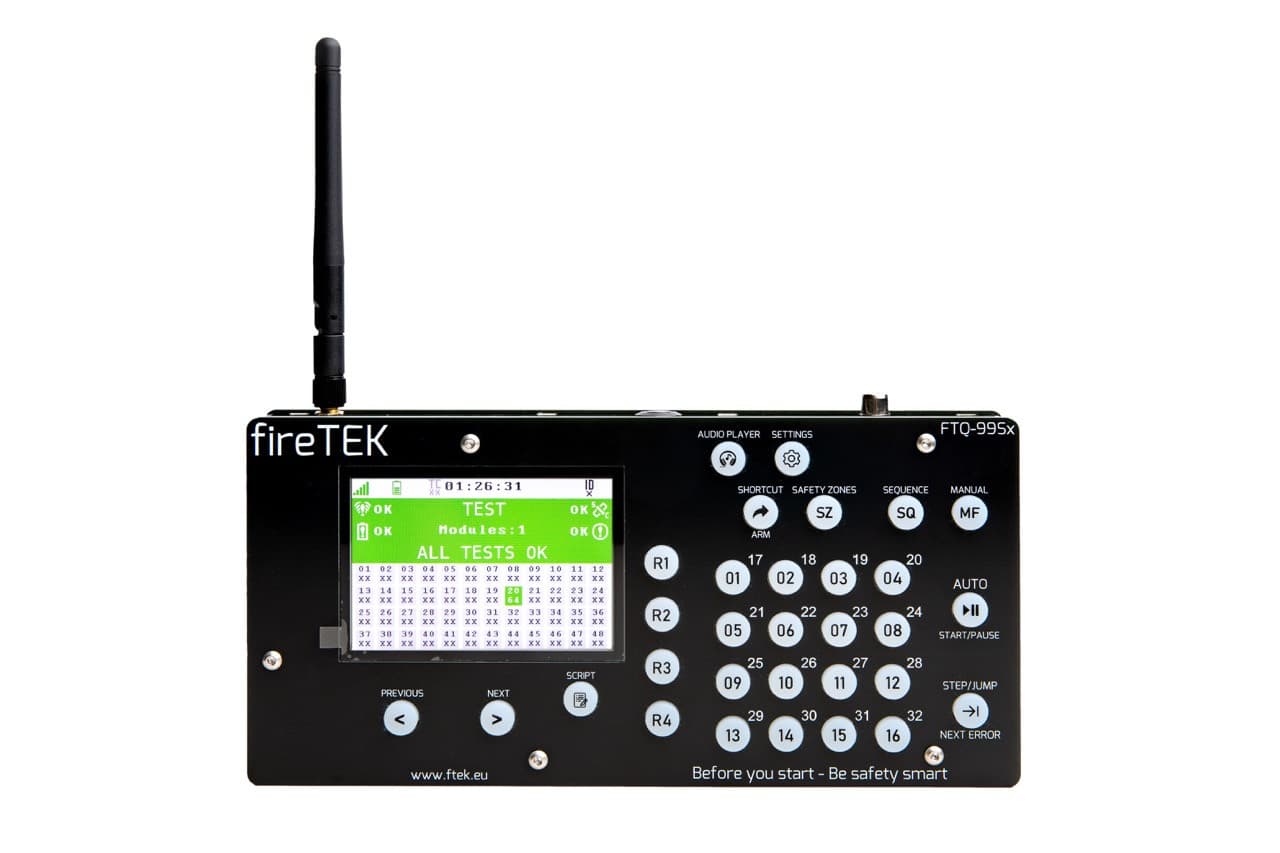

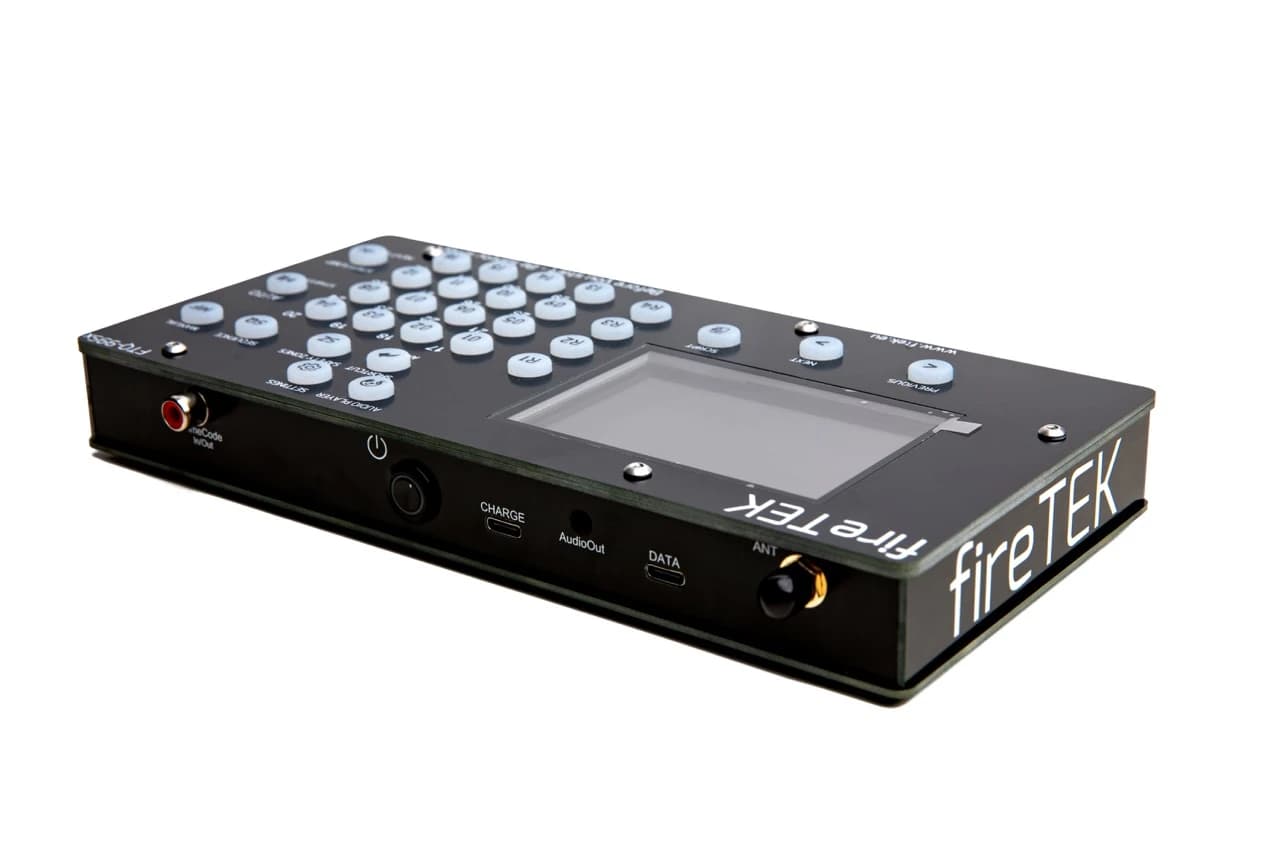

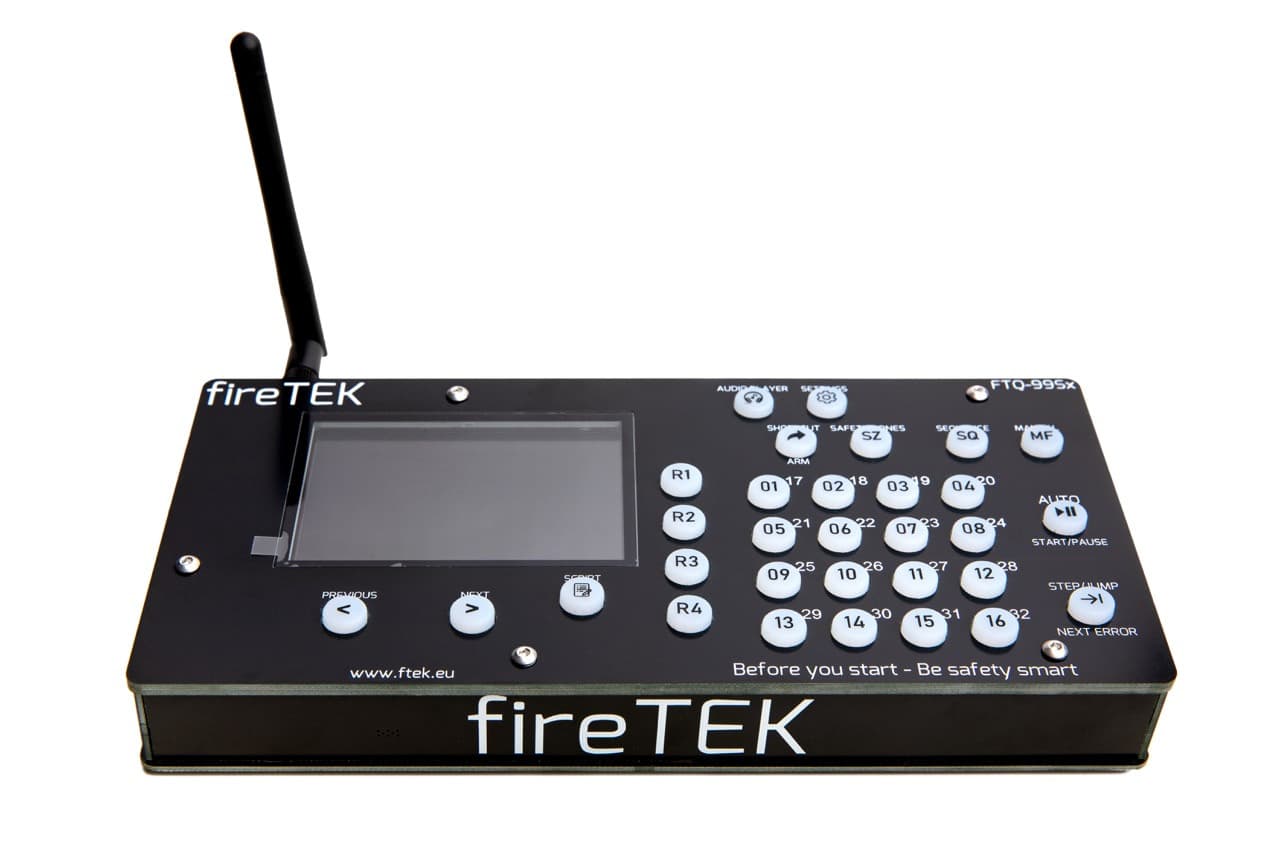

FireTEK FTM-99Sx Base Controller – Advanced Command Unit for Pro-Grade Show Control Wireless Precision, Audio Playback, and Timecode Integration in One Controller The FireTEK FTM-99Sx Base Controller is the central command unit for professional-grade fireworks and pyrotechnic productions. Engineered for seamless wireless control, the FTM-99Sx offers bi-directional communication with up to 99 FireTEK modules through FireTEK’s robust wireless mesh network—ensuring total control over manual, automatic, and semi-automatic firing modes. Designed to minimize setup complexity and maximize performance, the controller includes a built-in audio player that supports both MP3 and WAV formats. Easily synchronize music to your script with onboard memory or USB drive playback—no need for external devices. The FTM-99Sx also features SMPTE LTC timecode reception for frame-accurate cueing in professional pyromusicals. With real-time system monitoring, illuminated tactile buttons, and a large backlit LCD display, the FTM-99Sx delivers advanced visibility, intuitive control, and reliable performance for every kind of display. Key Features: Wireless Mesh Communication: Controls up to 99 FireTEK modules with reliable bi-directional signal transmission. Built-In Audio Player: Supports MP3 and WAV file playback via internal memory or USB drive. Timecode Integration: Receive SMPTE LTC timecode for frame-accurate pyromusical synchronization. User-Friendly Display: Large backlit LCD shows module status, system info, cue data, and real-time diagnostics. Illuminated Button Interface: Visual feedback for menus, channels, and firing status—even in low light. Rechargeable Internal Battery: USB-rechargeable LiPO battery with up to 24 hours standby time. External Antenna: Enhances wireless performance in complex firing environments. Cross-Compatible: Interfaces with FireTEK's PC software and Android mobile app for flexible show control. Includes: FTM-99Sx Base Controller External Antenna USB Charging Cable 7-Year Hardware Warranty (2-Year Battery Warranty) Why Choose the FTM-99Sx? The FTM-99Sx Base Controller is the ultimate tool for show operators who demand reliability, flexibility, and total control. With integrated audio, timecode sync, and real-time diagnostics—all in one powerful device—you can confidently execute complex shows with professional precision. Specifications: NUMBER OF SLAVES:Pyro: up to 99 fireTEK firing modules (FTQ-16×64 or FTQ4x16)/6336 pyro channels, 99 DMX universes with 128 DMX channels each.Audio: up to 9 Audiobox if need to play music from different positions. CASE: rugged light construction, fire retardant, shock and water resistant, modular design.Dimensions: 220x118x27mmWeight: 550g (without antenna) COMMUNICATIONS: bidirectional, encrypted.Wireless 868/915Mhz*: With 1 hope repeater and up to 10Km range (more realible on interferences).Wireless 2,4Ghz*: With up to 30 hops mesh and up to 15Km range. SMART AUTOMATICALLY TEST:– Automatically makes all the tests and report to the user if there is any problem detected***.– NO complicated tests procedure, NO need user to press a button. Automatically fully tests all modules every few seconds.– One button press to jump to the next module with errors where errors will be marked with RED.– Four categories of errors: communication, battery, Script vs connected and other.– Two kind of errors: Warnings and faults.– Warnings may not affect the show: as low battery (but will still work for at leats one hour), connected but not in script.– Faults: May affect the show if are not solved as: in script but not connected, depleated battery, module disconnected. POWER:Battery: Single cell recharghable Lipo 3.7V@4000mAh, easy replacebable by the user.Charging: USB C from standard USB charger. About 7 hours to fully charge.External power: Any USB charger or USB power bank and would work even if internal battery is failed or is missing. STANDBY TIME: It can be fast and easy extened with an external USB power bank.Fully working: up to 12 Hours. USER INTERFACE:Display: Color LCD 3,5′ 480*320 with backlight for local testing of all statuses from all modules.Keyboard: 31 control buttons + 1 power button. FUNCTIONALITIES:Main Master: To control up to 99 fireTEK firing modules and up to 9 Audioboxes.Backup Master: For backup control in case Main Master fails during the show.As Audiobox: In this mode it can act only as an Audiobox. All the other buttons are disabled. FIRING MODES:Fully automatic with or without music, sequence firing, step fire and manual firing and in any combination in the same time.Manual fire: Any module or up to 9 modules in the same in any firing states (Arm/Play/Pause) even when a script is running.Sequence fire: Up to 64 sequences which can be start anytime in firing states (Arm/Play/Pause). Does not affect the main script. Multiple sequences can be fired and can overlap without affecting each other. DMX sequences can be refired.Step fire: Manual fire step by step by automatically increasing channel/rail and module numberJump to next event: Manual jump to next event in script. SAFETY ZONES:– You can have up to 16 safety zones to fast disable some products or modules. FIRING CONTROL:Panel buttons: From controller buttons.Time code: From external time code SMPTE/LTC.GPS Time**: On a preset very precise time via GPS. AUDIOPLAYER:– Built in high fidelity audio player, 3.5mm Jack output stereo.File format: wav, 44100@16b or 32b.Storage: Internal memory or USB drive. TIMECODE:– In and Out via RCA connector.Input format: 24fps, 25fps and 30fps Autodetect.Output: 25 or 30 fps. GPS:– Controller has default built in GPS module for precise timing. OPTIONS (Plug and play boards):– GPS, wireless 868/915Mhz or wireless 2.4Ghz. SCRIPT:– Scripts upload into internal memory.– Scripts can be upload it wireless to modules.– It displays Next/Current/Last product firing, time until next shoot, time until end of the show, time from begining of the show. OTHER:Power off: Can be powered off via controller, It has protection against unintented power off. Automatically power off when is not connected to a controller or is not used in Master/Independent mode.Sleep: Sleep and wake up from controller. Wake up also it can be done from module itself.Buzzer and lights: Acoustic and LED signals for Arming and firing.Firmware update: Free, Fast and Easy via USB drive. CERTIFICATIONS:FCC, IC and CE certified design, NFPA Compliant. * Not possible both** Options required
